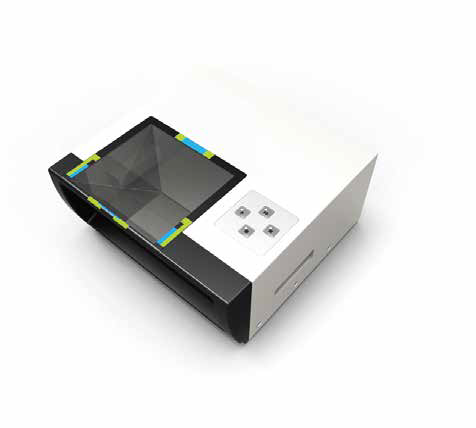

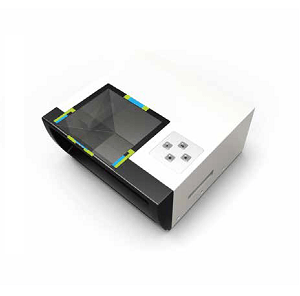

NSCAN-P Live Scanner / Palm Scanner
Palm Scanner
·Four finger slaps, single rolls, single flat,
on thumb, half palm, writer’s palm
الوصف
Features
Palm Scanner
·Four finger slaps, single rolls, single flat,
on thumb, half palm, writer’s palm
FBI Certification
·FBI IQS Appendix-F Certification
USB Interface Support
·Compatible interface with USB 2. 0
Demo Program and SDK
Specification
Detail Specification NSCAN-P
| Fingerprint Type | Single finger Flat / Single Roll, Dual finger flat, Four finger slap, Palm, Writers palm | Operating Temperature | 0℃ ~ 40℃ |
|---|---|---|---|
| Resolution | 500 or 508dpi / 256 gray | Operating Humidity | 10 90%, non-condensing |
| Speed | 20 frames per second (fps) | Operating Voltage | 12 VDC |
| Platen Size | 155. 9 X 144. 8 mm | Dimension | 47. 2 x 34. 4 x 81 mm |
| Sensing Area | 130 X 130 mm(5. 12” x 5. 12”) | Certification | CE |
| Image Quality Standards | FBI IQS Appendix F | Dust Water Resistance | IP43 |
| Image format | raw, WSQ | Interface | USB 2. 0 high speed (data) |
| Weight | 8. 5Kg (Scanner only) | Operating System | Microsoft Windows |
