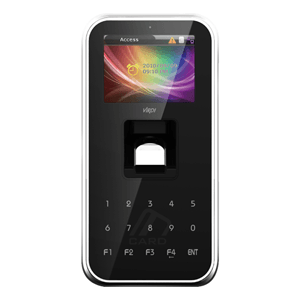

AC-5100 Fingerprint / Card Terminal with Camera & Bluetooth Mobile Key

Bluetooth Support

·Bluetooth-enabled mobile key solution
·UNIS-B PLUS : App for administrators
·V-CARD : App for mobile key users

الوصف

 AC-5100
Fingerprint / Card Terminal with Camera & Bluetooth Mobile Key
Fingerprint / Card Terminal with Camera & Bluetooth Mobile Key

2. 8 inch Color Screen

Intuitive UI , simplifies operation
User Customizable LCD Background
Features

Bluetooth Support

·Bluetooth-enabled mobile key solution
·UNIS-B PLUS : App for administrators
·V-CARD : App for mobile key users

Patented Live & Fake Finger Detection

·Optical sensor and algorithm detect fake fingers (paper, film, silicone, rubber and gelatin)

Multi-Language Support

·Customizable language and menu setting

Built-in Camera

·Capture images based event log data

·Graphic UI and customizable LCD background.

Open Supervised Device Protocol (OSDP)

·communication protocol support that allows peripheral devices to interface with control panels or other security mgmt. systems

Specification

Detail Specification AC-5100

CPUARM, 533MHz CPUMemory128MB RAM + 32MB FLASH Memory
LCD2. 8” Color LCDMax Users20,000 (1:1)15,000 (1:N)
Power Consumption12V, Max 350mA (4. 2W)
CommunicationTCP/IP, Wiegand In/Out,
RS485, RS232
Log Capacity64,000
Dimension88 x 175 x 43. 5 mmCertificatesKC, CE, FCC, RoHS
RFID Card Option125KHz EM / 13. 56MHz Smart Card / Desfire / Felica / HID Prox(optional) / HID iClass(optional), SAM Slot

.
